What Is an Environmental Monitoring System (EnvMS)? — And How Is It Different From BMS?
Copied to clipboard ✓
A Hyderabad Pharma Plant, the Morning After an RH Excursion
Dr. Padmavathi is the Quality Head at a Hyderabad pharma formulation plant. The night supervisor leaves a deviation note on her desk: "Cleanroom-3 RH crossed 65 percent for 14 minutes between 02:08 and 02:22 AM." Padmavathi opens the BMS workstation. The trend is there — RH spiked to 68 percent, the AHU dehumidifier ramped up, the value returned to band. The BMS control loop did its job. Then the FDA inspection scenario rehearses in her head. The auditor will ask: "Show me the validated record of that excursion. Who reviewed it? Who signed off the deviation? What is the impact assessment for any product manufactured during that window?" The BMS trend is informational. It is not validated. It is not signed. It is not held in a tamper-proof database. It is not the answer the auditor expects. That is because BMS controls the room. EnvMS records the room — independently, validated, and audit-ready. Every single one of these problems has one solution.The Two Layers — Control vs Independent Recording

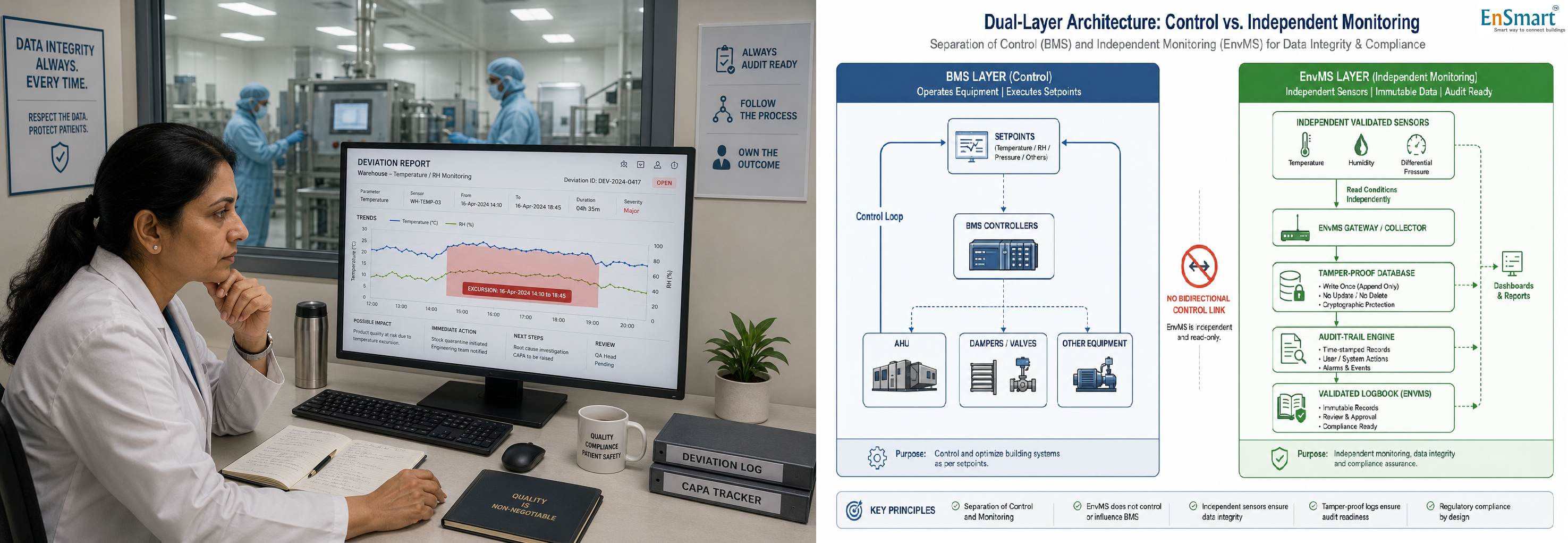

``` BMS — the control layer ───────────────────────────────────────── Sensors drive the controllers. Controllers drive the actuators. The cleanroom AHU keeps RH between 45 and 55 percent. If RH excurses, the BMS responds — ramp up dehumidifier, log the event in the BMS database. But the BMS database is the same system that controlled. A regulator does not trust a system that judges its own work. ``` ``` EnvMS — the independent recording layer ───────────────────────────────────────── A separate set of validated sensors. A separate database. A separate user-access policy. A separate alarm channel. EnvMS does not control anything. It only records. When a regulator asks for proof of cleanroom conditions, EnvMS produces a tamper-proof, signed, time-stamped report. The control system did not write this record. An independent monitoring system did. ```What EnvMS Records — Across Four Industries
``` Pharma cleanrooms (ISO 14644 + 21 CFR Part 11) Temperature, RH, differential pressure (DP), particle counts (0.5 micron, 5 micron), viable counts (settle plates, active samplers), HEPA filter integrity test results. Data centres Rack-inlet temperature (per rack), rack-outlet temperature, hot/cold aisle DP, raised-floor leak detection, door-open contacts, room RH, AHU/CRAC discharge temp. Museums, archives, libraries Temperature, RH (held within conservation band), light exposure (lux), dust deposition, CO2 (visitor density indicator). Cold storage and food (HACCP) Temperature (per chamber), door-open events, defrost cycles, excursion duration and amplitude. ```Why Independence Matters
If the same system controls and records, three things go wrong over time: ```- Trust — auditors cannot validate a system against its own logs.
- Investigation — when a deviation is found, the BMS engineer
- Reliability — if the BMS database is reset, restored, or
Architecture Pattern
``` Field layer (validated sensors) Temp, RH, DP, particle count | v EnvMS controller (read-only from sensors) | v Tamper-proof database with time-stamped writes plus electronic signature workflow | v Audit-trail engine + automated deviation reports | v Operator and QA dashboards ``` A separate alarm path: critical deviations escalate by email and SMS, even if the BMS alarm queue is full or down. A BMS keeps the room within band. An EnvMS proves the room stayed within band. The first is engineering. The second is evidence — and in regulated industries, evidence is the deliverable.Related Topics
